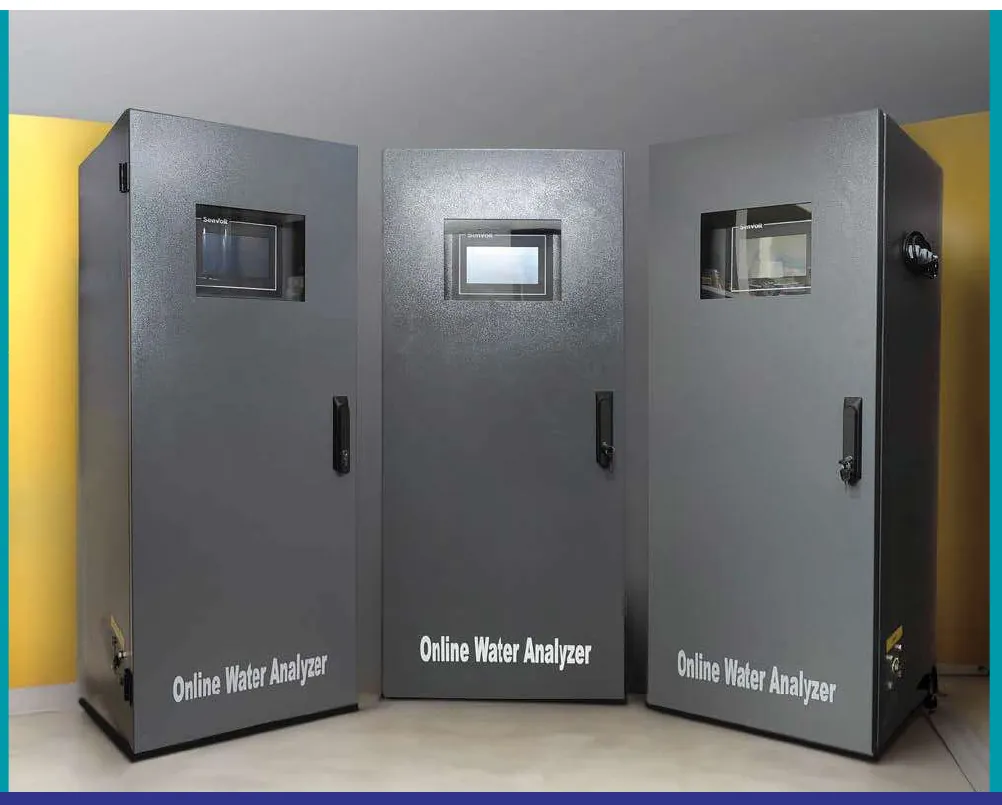

ETP & STP Online Continuous Monitoring Water Quality Analyzer
Multi-parameter online effluent monitoring system for ETP and STP: COD, BOD, TOC, TSS, pH, TDS, DO and more, with 4G gateway to CPCB/SPCB servers and the Senvolt cloud.
- COD, BOD, TOC, TSS, pH, TDS, DO and more in one cabinet
- Sends data to CPCB/SPCB and the Senvolt cloud at the same time
- Built-in 4G and GPS – no intermediate PC
- RS485 port for your BAS/BMS
- 7" or 10" touch display with local logging and trends
ETP & STP Online Continuous Monitoring Water Quality Analyzer specifications
| Parameters | COD, BOD, TSS, pH, TDS, ammonium, TOC, turbidity, chlorine, dissolved oxygen, nitrates, nitrites, ozone concentration, ORP, total ammonia nitrogen |
|---|---|
| COD / BOD / TOC | UV double-beam digital sensor |
| TSS | UV principle digital sensor |
| Sensors | Digital, RS485 communication |
| Display | 7" or 10" display unit |
| Connectivity | 4G network with SIM (optional), GPS |
| Cloud output | Senvolt cloud monitoring dashboard; CPCB / SPCB server connectivity |
| Local integration | RS485 to client BAS / BMS / automation |
| Alerts | Dashboard, email and SMS |
| Local functions | Data logging, alarms, trends, calibration settings |
| Compliance | Designed to CPCB and SPCB online monitoring guidelines |
Industries and STPs that discharge treated effluent are increasingly required to monitor outlet quality continuously and transmit the data to the Central and State Pollution Control Boards. The Senvolt online water quality analyzer is a complete, factory-built cabinet that measures the required parameters and reports them in real time.
How it works
Digital RS485 sensors for COD/BOD/TOC (UV double beam), TSS (UV), pH, TDS and DO feed the analyzer. Its on-board gateway connects over 4G and transmits data simultaneously to CPCB/SPCB servers and the Senvolt cloud dashboard, while an RS485 port shares the same readings with your plant BMS or SCADA. No separate PC is needed on site.
Parameters available
- COD – chemical oxygen demand
- BOD – biochemical oxygen demand
- TOC – total organic carbon
- TSS – total suspended solids
- pH, TDS and conductivity
- Dissolved oxygen
- Ammonium and total ammonia nitrogen
- Nitrates and nitrites
- Turbidity
- Chlorine, ozone concentration and ORP
Features
- Multi-parameter measurement in one cabinet
- Easy maintenance and calibration
- Designed to CPCB and SPCB guidelines
- Senvolt cloud dashboard with email and SMS alerts
- Local data logging, alarms, trends and calibration settings
Tell us your industry category, discharge point and the parameters your consent to operate lists, and we will configure the analyzer to match.
