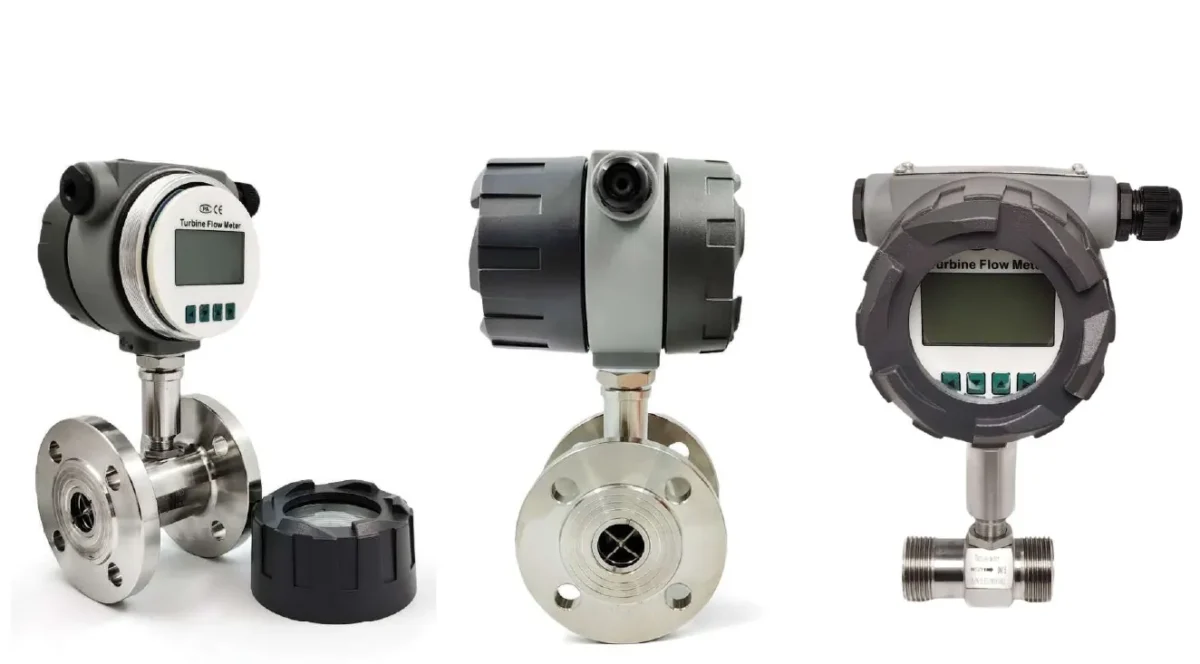

Turbine Flow Meters
Liquid Turbine Flow Meter
Stainless steel liquid turbine flow meter, 4 mm to 200 mm, flanged or threaded, pulse and 4–20 mA output with optional RS485. For water, diesel, solvents and light oils.
- Line sizes from 4 mm to 200 mm
- Flanged or threaded connections
- SS304 body (SS316 optional)
- Pulse + 4–20 mA, optional RS485
- −20 to +120 °C medium temperature
Liquid Turbine Flow Meter specifications
| Power supply | 24 VDC, current ≤ 10 mA |
|---|---|
| Output – transducer | Pulse / 4–20 mA |
| Output – transmitter | Pulse + 4–20 mA (optional RS485) |
| Medium temperature | −20 to +120 °C |
| Ambient temperature | −20 to +50 °C |
| Connection | Thread or flange |
| Transducer material | SS304 (optional SS316) |
| Impeller material | 2Cr13 stainless steel (optional duplex SS) |
Turbine flow meters give fast, repeatable readings on clean, low-viscosity liquids. They are a good fit for diesel and fuel oil consumption, solvent and chemical batching, RO and DM water, and filling lines where you need a pulse output for batch control.
Flow range by pipe size
| Pipe size | Flow range (m³/h) |
|---|---|
| 4 mm | 0.04–0.25 |
| 6 mm | 0.1–0.6 |
| 10 mm | 0.2–1.2 |
| 12 mm | 0.4–2 |
| 15 mm | 0.6–3.6 |
| 20 mm | 0.7–7 |
| 25 mm | 1–10 |
| 32 mm | 1.5–15 |
| 40 mm | 2–20 |
| 50 mm | 4–40 |
| 65 mm | 7–70 |
| 80 mm | 10–100 |
| 100 mm | 20–200 |
| 125 mm | 25–250 |
| 150 mm | 30–300 |
| 200 mm | 80–800 |
Typical applications
- DG set and boiler fuel consumption
- Chemical and solvent batching
- RO, DM and process water
- Filling and dosing skids
Send us the application details and we will confirm the right configuration and lead time.
