Water Quality Controllers & Analyzers
Chlorine Meter CL102 with Flow Cell
Model CL102
Online chlorine meter with flow-through cup installation, 0–20 mg/L range, 0.001 mg/L resolution, 4–20 mA and RS485. For drinking water and hospital wastewater.
- 0–20 mg/L, 0.001 mg/L resolution
- Flow-through (circulation cup) installation
- 4–20 mA and RS485 outputs
- 0–60 °C sample temperature
CL102 specifications
| Range | 0–20 mg/L |
|---|---|
| Resolution | 0.001 mg/L |
| Temperature | 0–60 °C |
| Output | 4–20 mA and RS485 |
| Applications | Drinking water, medical (hospital) wastewater |
| Installation | Circulation (flow-through) cup |

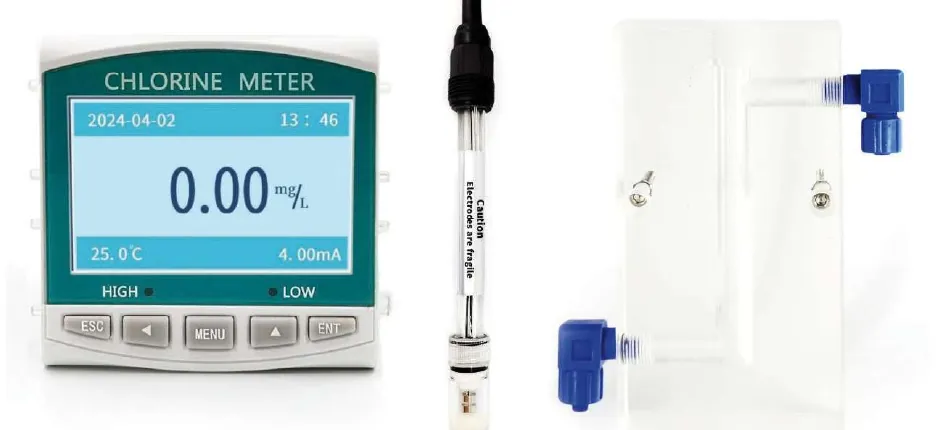

The CL102 combines a chlorine meter, electrode and transparent flow-through cell into one package. A small side stream of sample passes the electrode at a steady flow, which keeps readings stable and makes the sensor easy to inspect and clean.
Typical applications
- Drinking water and packaged water plants
- Hospital and medical wastewater disinfection
- Distribution network sampling points
Send us the application details and we will confirm the right configuration and lead time.
